ZXL-FPED Shuttle Table Fiber Laser Cutting Machine

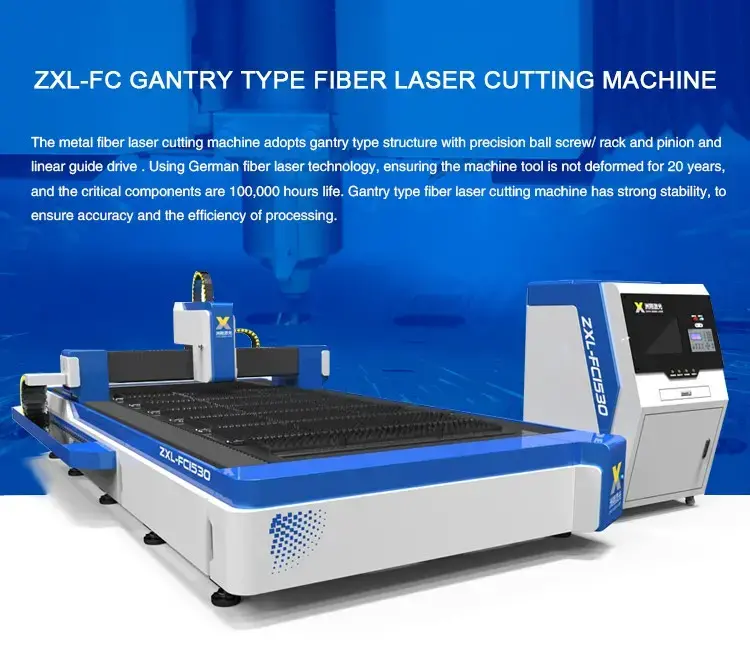

1.The metal fiber laser cutting machine adopts gantry type structure with precision ball screw/ rack and pinion and linear guide drive .
2.Using German fiber laser technology, ensuring the machine tool is not deformed for 20 years, and the critical components are 100,000 hours life
3.Gantry type fiber laser cutting machine has strong stability, to ensure accuracy and the efficiency of processing
Get A Free Quote

Product Description



PowerFiber Laser Cutting MachineCO2 Laser Cutting Machine
Carbon Steel Cutting ThicknessStainless Steel Cutting ThicknessAluminum Alloy Cutting ThicknessCarbon Steel Cutting ThicknessStainless Steel Cutting ThicknessAluminum Alloy Cutting Thickness
500W6mm3mm1mm
700W8mm4mm1.5mm
1000W10mm5mm2mm
2000W14mm8mm3mm
2500W16mm9mm3.5mm12mm6mm3mm
3000W18mm10mm4mm12mm8mm4mm
4000W20mm10mm5mm22mm12mm6mm
5000W20mm10mm6mm25mm14mm8mm




Product Namelaser cutting machine
Fiber Laser Power500W/700W/1000W/1500W/2000W/3000W
StrokeX axis3000/4000/6000mm
Y axis1500/2000mm
Z axis120mm
Moving SpeedX axis60m/min
Y axis60m/min
Z axis20m/min
AccuracyX/Y axis position accuracy±0.03mm
X/Y axis repeat positioning accuracy±0.02mm
The exact process range can be designed and manufactured according to customer's requirements.




1. High output power, 500-5000W is optional.

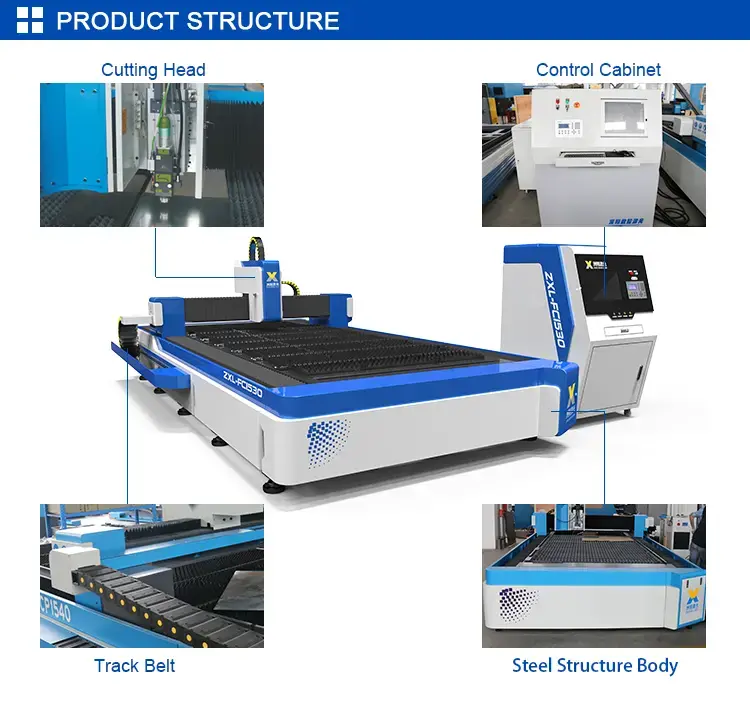

2. Adopting gantry type structure with precision ball screw(Or Taiwan YY gear rack) and linear guide drive to ensure accuracy of machine tools.

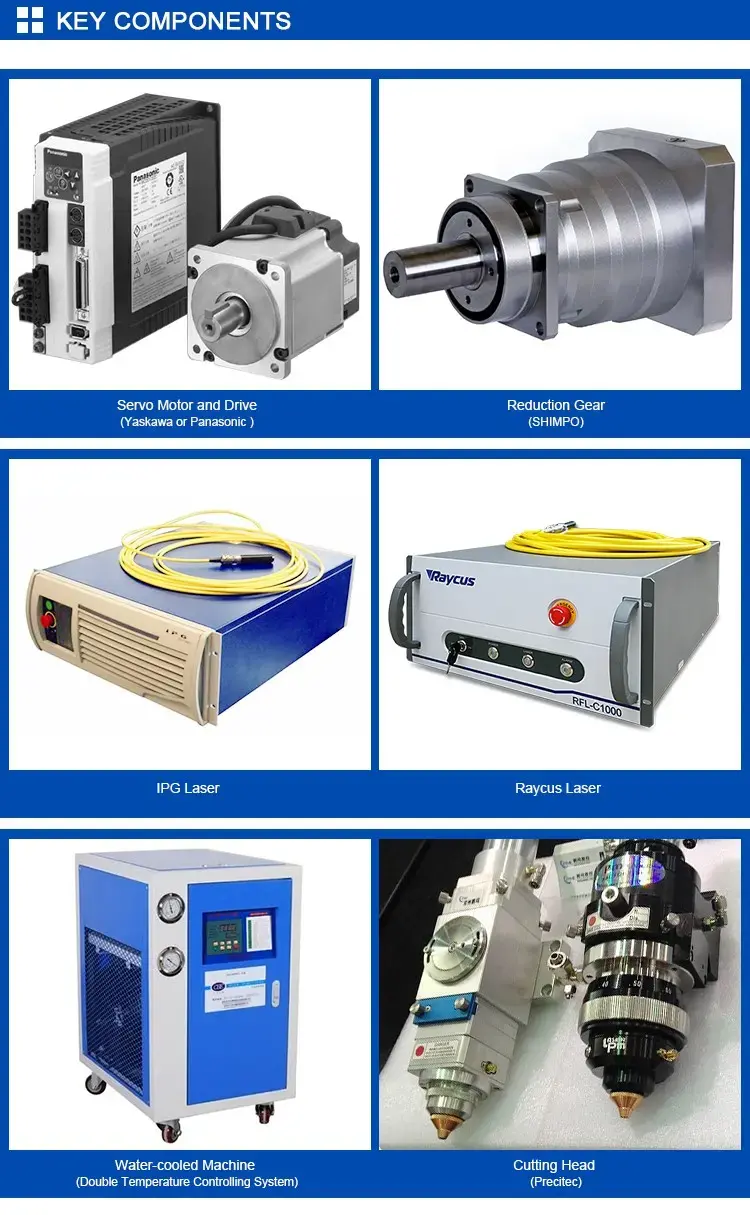

3. Adopting Switzerland advanced laser cutting head, position precisely, avoid undulate plate deformation, then gets qualified cutting seam.

4. Adopting advanced laser, stable performance, the useful life of key parts can reach 100 thousand hours.

5. Independent visual operating station, can adopt any place.

6. Low Processing costs, saving water, electricity and gas.




Zhouxiang is professional laser cutting machine supplier in China. We produce high quality and high precision fiber laser cutting machine and exported over 30+ countries. If you are interested in ourproducts and require our laser cutting machine price, please contact us.
