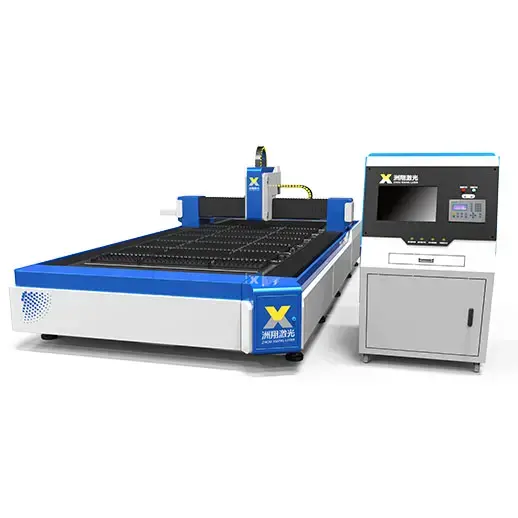

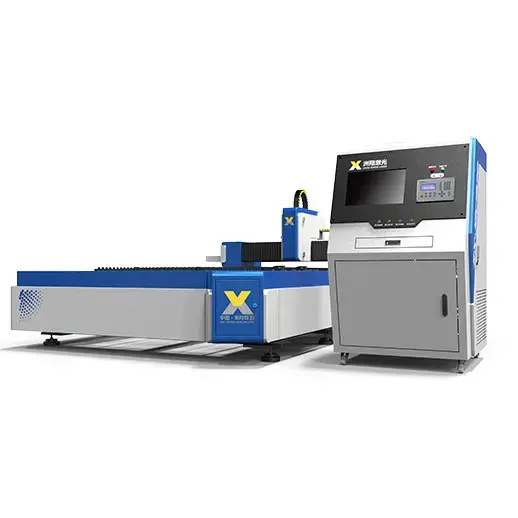

ZXL-FC Fiber Laser Cutting Machine
1.The metal fiber laser cutting machine adopts gantry type structure with precision ball screw/ rack and pinion and linear guide drive .
2.Using German fiber laser technology, ensuring the machine tool is not deformed for 20 years, and the critical components are 100,000 hours life
3.Gantry type fiber laser cutting machine has strong stability, to ensure accuracy and the efficiency of processing
Get A Free Quote

Product Description

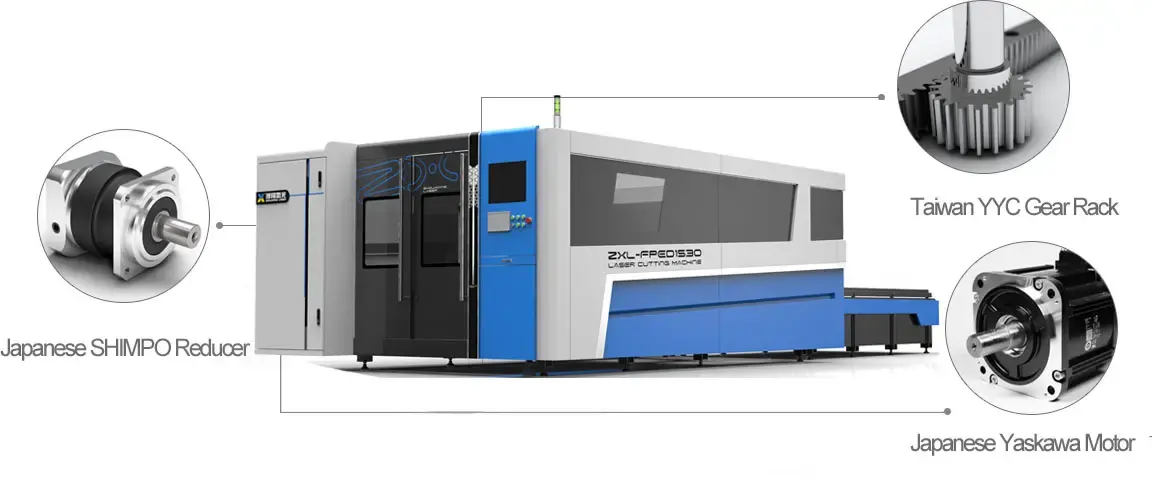

ZXL-FPED Fiber Laser Cutting Machine.png

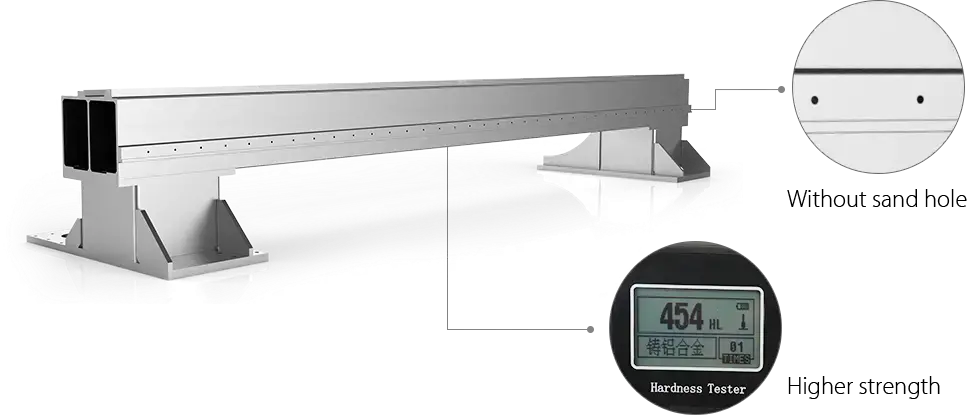

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and

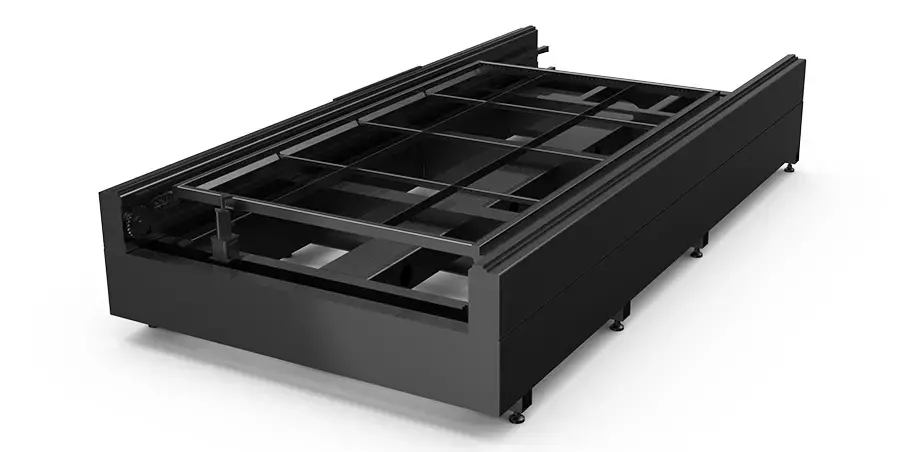

High Strengh Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

  • High strength, stability, tensile strength, ensuring 20 years of use without distortion;
  • Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

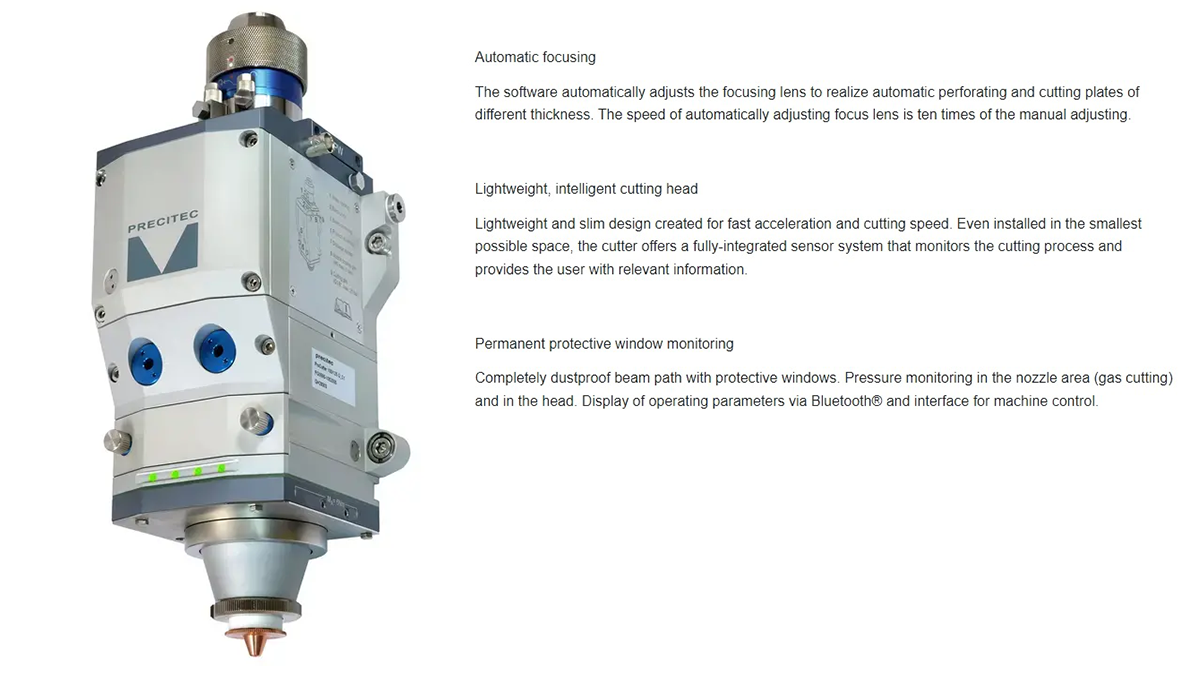

Germany Precitec Laser Cutting Head




Technical Parameters

Machine modelFC1530
Laser power1000W 2000W 3000W 4000W 6000W (Optional)
Cutting thickness0.5-20mm
Working area3000mm * 1500mm
Repeat positioning accuracy±0.02mm
Maximum speed120m/min
Max.acceleration1.5G
Voltage and frequency380V 50Hz/60Hz

Industry Applications

FPED1530 fiber laser cutting machine as one classic model, widely used in life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

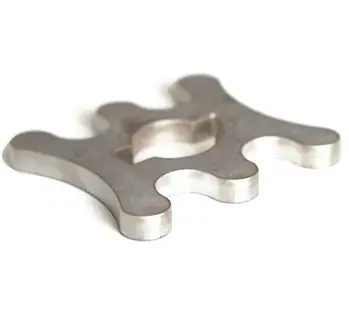

Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

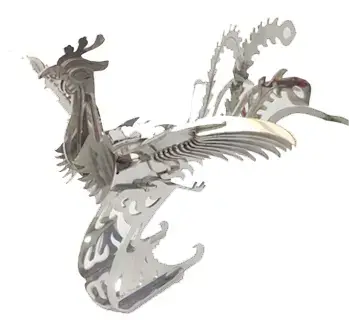

ZXL-FPED Fiber Laser Cutting Machine (2).png

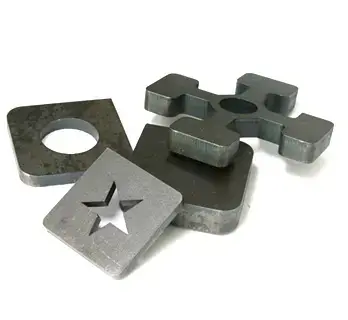

ZXL-FPED Fiber Laser Cutting Machine (3).png
