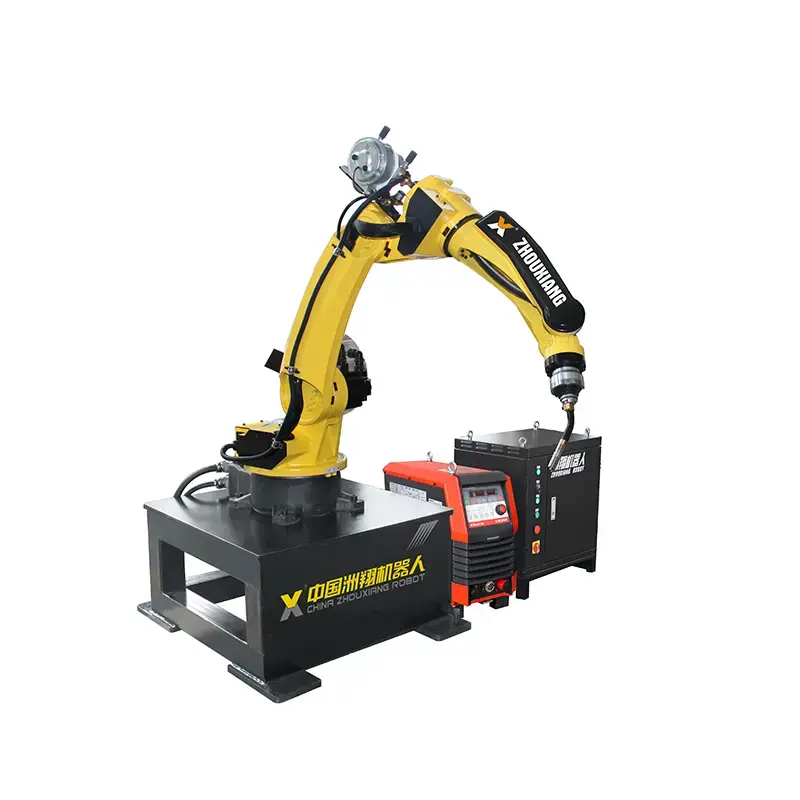

Welding Robot
Introduction
Get A Free Quote

Product Description


ModelZXR-140
Max. load capacity6kg
Freedom of movement6axis
Max linear speed1500mm/s
Repeat positioning precision±0.08mm
Coordinate controlJoint, right angle, tool, workpiece coordinate
Maximum working radius1.4m
Maximum working rangeJ1：-170°～+170°

J2：-90°～+155°

J3：-82°～+68°

J4：-150°～+150°

J5：-112°～+112°

J6：-220°～+220°
PeripheralsUp to 2 external axes can be added
Welding Robot Features:
Assembly partItem description
Robot  partRobot main bodyMade of cast iron, long life, impact resistance

Servo motorFast acceleration, high precision, comes with brake unit

Electrical systemUsing Shanghai Qifan, Siemens, Schneider, and Omron's  electrical components from domestic and international  well-known brand

Control systemCRP automatic control system, TCP constant speed control
Welding roomHighly integrated design, small footprint
Welding equipmentDigital control, welding current, voltage output is stable, with unified control
Torch cleaning deviceThis equipment has automatic counting, automatic cleaning torch, pruning wire, spray welding anti-splash solution
